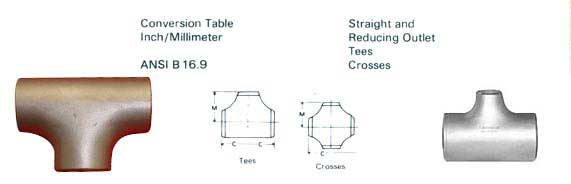

Non. Pipe Size mm. Dia. Normal		Center to End of Run	Center to End of Branch	Nom. Pipe Size Nominal		Center to End of Run	Center to End of Branch
Run	Branch	C	M	Run	Branch	C	M
15	6	25	25	80	25	86	67
	10	25	25		32	86	70
	15	25	25		40	86	73
20	10	28	28		50	86	76
	15	28	28		65	86	83
	20	28	28		80	86	86
25	10	34	34	90	40	95	79
	15	34	34		50	95	83
	20	34	34		65	95	89
	25	34	34		80	95	92
32	15	48	48		90	95	95
	20	48	48	100	40	105	86
	25	48	48		50	105	89
	32	48	48		65	105	95
40	15	57	57		80	105	99
	20	57	57		90	105	12
	25	57	57		100	105	105
	32	57	57	125	50	124	105
	40	57	57		65	124	108
50	20	64	44		60	124	111
	25	64	51		90	124	114
	32	64	57		100	124	117
	40	64	60		125	124	124
	50	64	64	150	65	143	121
65	25	76	57		80	143	124
	32	76	64		90	143	127
	40	76	67		100	143	130
	50	76	70		125	143	137
	65	76	76		150	143	143
